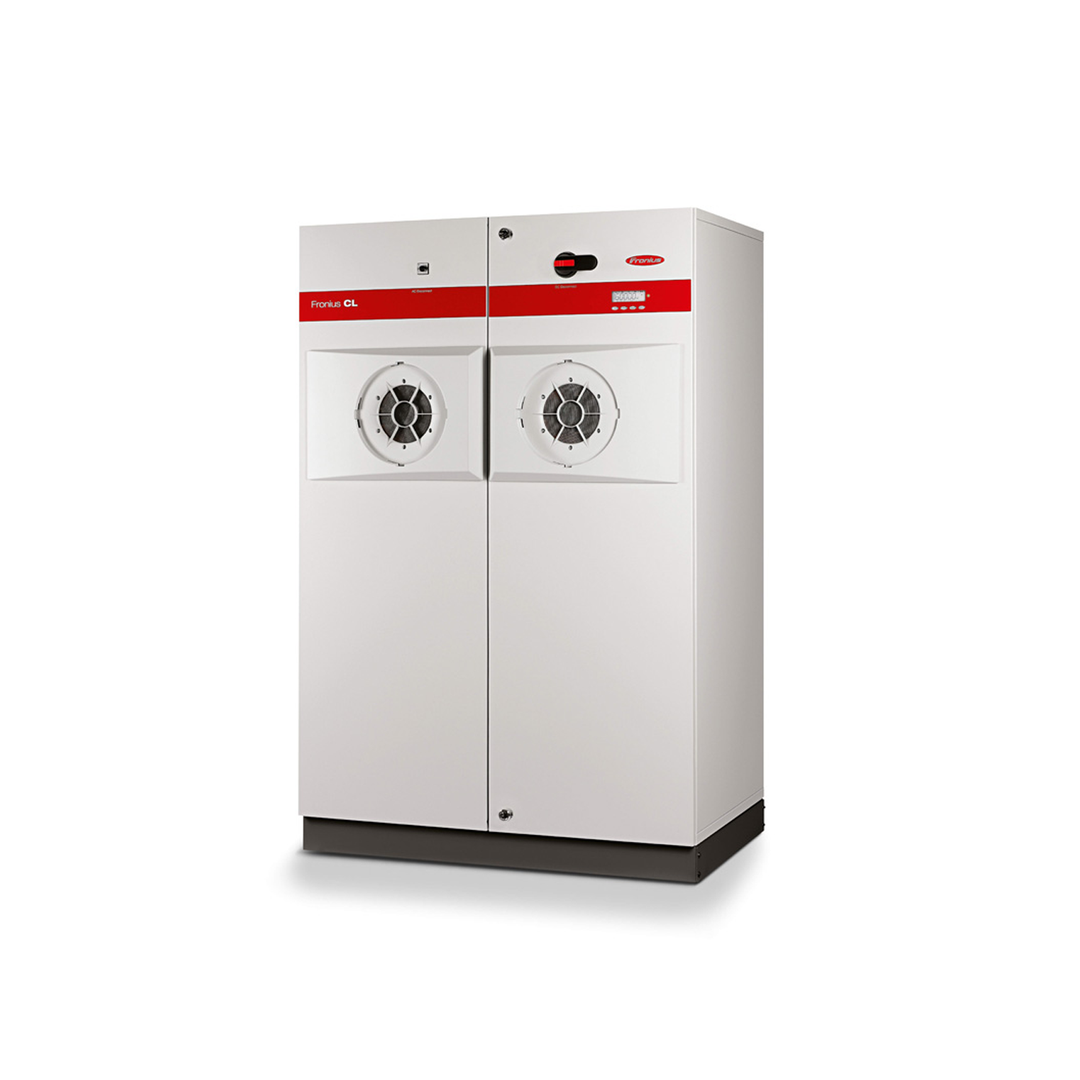

FRONIUS Wechselrichter CL 60.0
Artikel-Nr.: CL60.0
- Auf Lager
Input Data
DC maximum power at cos φ = 1: 64.4 kW
Max. input current (Idc max): 280.2 A
Max. array short circuit current: 420.3 A
Min. input voltage (Udc min): 230 V
Feed-in start voltage (Udc start): 260 V
Nominal input voltage (Udc,r): 370 V
Max. input voltage (Udc max): 600 V
MPP voltage range (Umpp min – Umpp max): 230 V – 500 V
Number of DC inputs: 3
Output Data
Grid connection (Uac,r): 3~NPE 400 V / 230 V
Min. output voltage (Uac min): 180 V
Max. output voltage (Uac max): 270 V
Frequency (fr): 50 Hz / 60 Hz
Frequency range (fmin – fmax): 46 Hz – 65 Hz
Distortion factor: < 3%
Power factor (cos φac,r): 0.85 – 1 ind. / cap.
General Data
Dimensions (height x width x depth): 1,730 x 1,105 x 722 mm
Weight: 303 kg
Degree of protection: IP 20
Protection class: 1
Overvoltage category (DC / AC): 2 / 3
Night-time consumption: 12.2 W
Inverter concept: HF transformer
Cooling: Regulated air cooling
Installation: Indoor installation
Ambient temperature range: from –20°C to +50°C
Permitted humidity: 0% to 95%
DC connection technology: Bolt M10
AC connection technology: Bolt M10
Certificates and compliance with standards:
VDE V 0126-1-1, ÖVE/ÖNORM E 8001-4-712, UTE C15-712-1, G 59, CER 06-190, CEI 0-21
Efficiency
Max. efficiency: 95.9 %
European efficiency (ηEU: 95.5 %
η at 10% Pac,r1): 91.1 / 93.7 / 91.4 %
MPP adaptation efficiency: > 99.9 %
η at 10% Pac,r1): 93.5 / 95.2 / 93.9 %
η at 20% Pac,r1): 94.6 / 95.7 / 94.8 %
η at 25% Pac,r1): 94.9 / 95.7 / 94.9 %
η at 30% Pac,r1): 94.9 / 95.8 / 95.0 %
η at 50% Pac,r1): 95.1 / 95.9 / 95.2 %
η at 75% Pac,r1): 94.5 / 95.5 / 95.3 %
η at 100% Pac,r1): 93.4 / 94.8 / 94.8 %
Protective equipment
DC insulation measurement: Warning/shutdown (depending on country setup) at RISO <500 kOhm
Overload behaviour: Operating point shift, power limitation
DC circuit breaker: Integrated
Interfaces
2x RS422 (RJ45 socket): Fronius Solar Net, interface protocol
2 signalling outputs: Max. current per output: AC max. 277 V / 10 A, DC max. 24 V / 10 A
Optional with Fronius Datamanager: WLAN, Ethernet, Modbus TCP, 6 digital inputs, 4 digital inputs/outputs, Datalogger, Webserver
Special features
Feed-in from: 80 W 95 W 120 W
