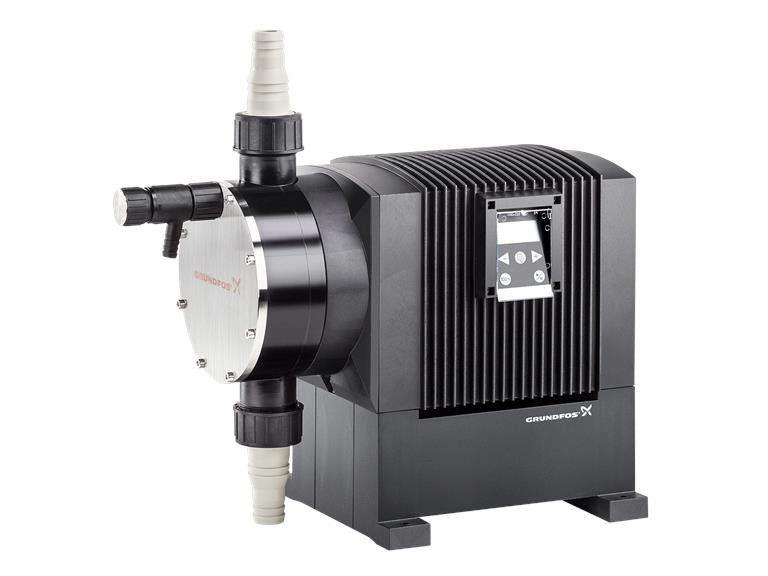

DME940-4AP SS/T/SS-S-31A2A2F
Compact, positive displacement diaphragm dosing pump with integrated variable-speed motor drive in an IP65 plastic enclosure. The pump is designed for optimum user-friendliness, accuracy and reliability and is equipped with a logical control panel with one-touch buttons and a multi-language backlight display. The capacity to be dosed in each function is set directly in l/hour, ml/hour or USgal/hour. For enhanced accuracy, the pump can be calibrated to the actual installation by means of a simple calibration function. The turndown ratio is 1 to 800 with unchanged accuracy and more uniform dosage with reduced pulsation throughout the capacity range. The pump is also equipped with a maximum capacity function (100 %) that allows the pump to work for a preset time at maximum capacity for priming or ordinary maintenance without changing pump settings.
The wetted parts are the following:
- Pump head
- PTFE-coated diaphragm
- Ball valves
- Manual bleed valve.
|
|
Possible operating modes:
- Manual dosing with direct setting in ml/hour, l/hour or USgal/hour
- External pulse control from external controller or water meter with direct setting in ml/pulse
- External analog 4-20, 20-4, 0-20 and 20-0 mA control with possibility of adjusting the pump capacity at maximum signal
- Timer-based batch function (internal timer)
- Pulse-based batch function (external pulse).
|
|
Other features:
- Built-in module for bus communication with PROFIBUS DP systems. The module enables remote monitoring and setting via this fieldbus system.
- On-site calibration function for calibrating the pump to the actual installation
- Anti-cavitation function for high-viscosity, degassing liquids or long suction lines
- Maximum capacity limitation
- Counters for numbers of pump strokes, operation hours and power on/off
- 14 optional display languages
- Input for low-level and empty-tank signals
- Alarm relay output
- Overload protection.
|
|
| ART DER STEUERUNG: |
| Steuerungsvariante: |
|
AP |
| Niveaukontrolle: |
|
Y |
|
| FÖRDERMEDIUM: |
| Fördermedium: |
|
Wasser |
| Medientemperatur während des Betriebs: |
|
20 °C |
| Dichte: |
|
998.2 kg/m³ |
|
| TECHNISCHE DATEN: |
| Prüfkennzeichen auf dem Typenschild: |
|
CE, EAC, NSF61, WEEE, CN ROHS |
|
| WERKSTOFFE: |
| Pumpengehäuse: |
|
Edelstahl nach DIN 1.4401 |
| Ventilkugel: |
|
Edelstahl nach DIN 1.4401 |
| Dichtung: |
|
PTFE |
|
| INSTALLATION: |
| Anschluss Saugstutzen: |
|
THREADED RP 1 1/4" |
| Anschluss Druckstutzen: |
|
THREADED RP 1 1/4" |
|
| ELEKTRISCHE DATEN: |
| Leistungsaufnahme P1: |
|
240 W |
| Netzfrequenz: |
|
50 / 60 Hz |
| Bemessungsspannung: |
|
1 x 100-240 V |
| Bemessungsstrom: |
|
2.4-1.0 A |
| Art des Kabelsteckers: |
|
SCHUKO |
|
| SONSTIGES: |
| Nettogewicht: |
|
30 kg |
| Bruttogewicht: |
|
33.1 kg |
| Herkunftsland: |
|
FR |
| Zolltarif Nr.: |
|
84135040 |
|
