GRUNDFOS Druckerhöhungsanlage HYDRO MULTI-E 3 CRIE 20-2 Art. 96152340
Artikel-Nr.: 96152340
- Aktuell verfügbar
GRUNDFOS Hydro Multi-E booster sets are designed for the transfer and pressure boosting of clean water in waterworks, blocks of flats, hotels, industry, hospitals, schools, etc. GRUNDFOS Hydro Multi-E booster set consists of 2 or 3 CRE, CRIE or CME pumps coupled in parallel and mounted on a common base frame provided with all the necessary fittings.
The Hydro Multi-E booster set is delivered with dry-running protection by means of an inlet pressure switch.
When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation.

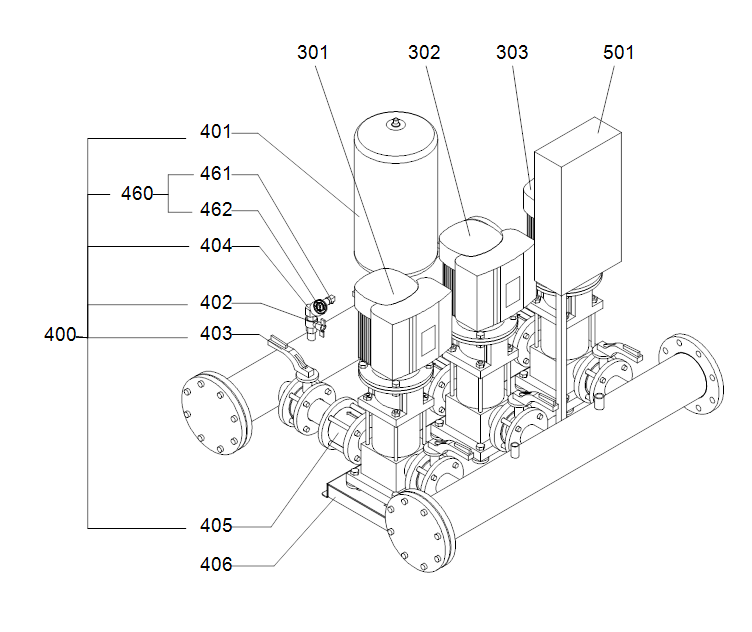

The Hydro Multi-E is mounted on a common base frame made of stainless steel (DIN W.-Nr. 1.4301). On the suction side are fitted a suction manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571) and an isolating valve. On the discharge side of the pumps are fitted a non-return valve, an isolating valve, a pressure gauge, a pressure transmitter, a diaphragm tank and a stainless steel discharge manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571). The Hydro Multi-E is fitted with an on/off-switch for the supply voltage and a breaker for each pump.
| Fördermedium: | ||
| Fördermedium: | Wasser | |
| Medientemperaturbereich: | 0 .. 60 °C | |
| Medientemperatur während des Betriebs: | 20 °C | |
| Dichte: | 998.2 kg/m³ | |
| Werkstoffe: | ||
| Pumpengehäuse: | Edelstahl | |
| Installation: | ||
| Max. Betriebsdruck: | 10 bar | |
| Maximal zulässiger Zulaufdruck: | PN10 bar | |
| Anschluss: | EN 1092-1 | |
| Anschluss Saugseite: | DN 100 | |
| Anschluss Druckseite: | DN 100 | |
| Elektrische Daten: | ||
| Leistung (P2) je Pumpe: | 2.2 kW | |
| Netzfrequenz: | 50 / 60 Hz | |
| Bemessungsspannung: | 3 x 400 V | |
| Bemessungsstrom: | 13.3 A | |
| IE-Wirkungsgradklasse: | IE3 | |
| Einschaltart: | E | |
| Schutzart (gemäß IEC 34-5): | IP54 | |
| Behälter: | ||
| Volumen des Druckbehälters: | 33 l | |
| Membrandruckbehälter: | Y | |
| Sonstiges: | ||
| Nettogewicht: | 274 kg | |
| Bruttogewicht: | 292 kg | |
| Versandvolumen: | 0.995 m³ | |
