GRUNDFOS Einstufige Inlinepumpe TPE 200-400/4 SC-A-F-A-BQQE-UW3 Art. 99474604
Artikel-Nr.: 99474604
- Aktuell verfügbar
Single-stage spiral pump with opposite suction and pressure ports in inline design. The suction and pressure ports have the same diameter. The pumps are designed according to the top pull-out principle, which means that the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump housing remains in the piping. The pump is equipped with a non-relieved rubber bellows seal. The mechanical seal complies with EN 12756. Pipe connection via DIN flanges PN 16 in accordance with EN 1092-2 and ISO 7005-2. The pump is equipped with a fan-cooled asynchronous motor. The motor is equipped with an integrated frequency converter and a PI controller. This enables the motor speed and thus the pump performance to be continuously adjusted to the current requirement. The pump is equipped with a differential pressure sensor.
| TYPE OF CONTROL: | ||
| VFD product number: | 99616826 | |
| Frequency converter: | integrated | |
| Frequency converter type: | CUE 3X380-500V IP55 RUG 55KW | |
| Approval for frequency converters: | CE, CULUS, C-TICK | |
| CONVEYING MEDIUM: | ||
| Media temperature range: | -25 .. 120 °C | |
| TECHNICAL DATA: | ||
| Pump speed on which the pump data is based: | 1485 1/min | |
| Rated flow rate: | 433 m³/h | |
| Nominal delivery head: | 35 m | |
| Actual impeller diameter: | 343mm | |
| GLRD code: | BQQE | |
| ISO acceptance class: | ISO9906:2012 3B | |
| MATERIALS: | ||
| Pump housing: | Gray cast iron | |
| Pump jacket: | EN-GJL-250 | |
| Pump housing: | ASTM class 35 | |
| Impeller material: | Gray cast iron | |
| Wheel: | EN-GJL-200 | |
| Impeller material according to ASTM: | ASTM class 30 | |
| INSTALLATION: | ||
| Ambient temperature: | -10 .. 50 °C | |
| Max. operating pressure: | 16 bar | |
| Max. pressure at specified temperature: | 16 bar / 120°C | |
| Connection type: | DIN | |
| Connection size: | DN 200 | |
| Nominal pressure level: | PN16 | |

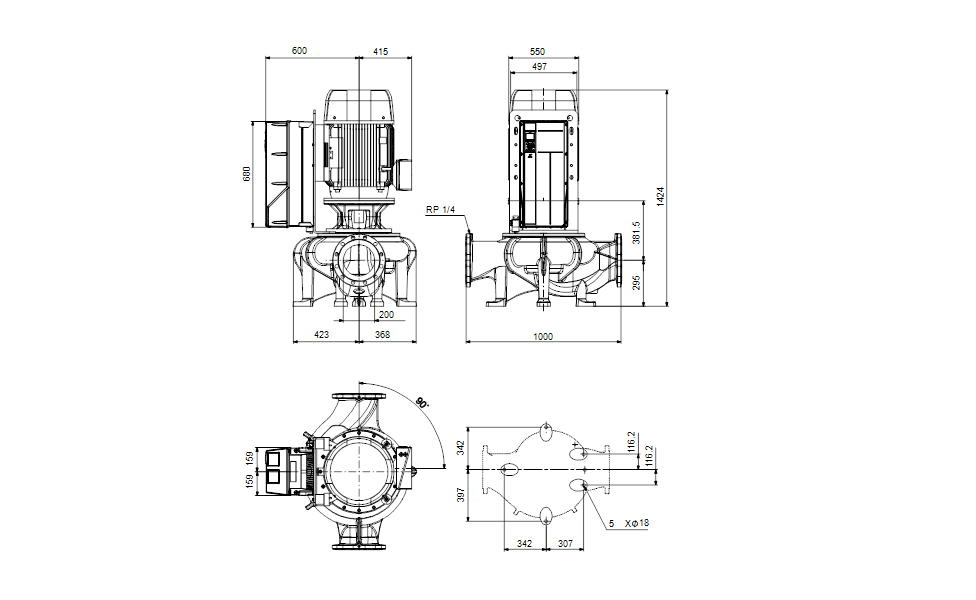

| Port to port length: | 1000mm | |
| Size motor flange: | FF500 | |
| ELECTRICAL DATA: | ||
| Engine design: | SIEMENS | |
| Rated motor power P2: | 55kW | |
| Mains frequency: | 50Hz | |
| Rated voltage: | 3 x 380-420D/660-725YV | |
| Rated current: | 96/56 A | |
| Starting current: | 680-680% | |
| Cos phi power factor: | 0.87 | |
| Rated speed: | 1482 1/min | |
| Efficiency: | IE3 94.6% | |
| IE efficiency class: | IE3 | |
| Motor efficiency at full load: | 94.6-94.6% | |
| Motor efficiency at 3/4 load: | 95.1-95.1% | |
| Motor efficiency at half load: | 95-95% | |
| Motor poles: | 4 | |
| Protection class (according to IEC 34-5): | IP55 | |
| Thermal class (IEC 85): | F | |
| Motor - product number: | 99454138 | |
| MISCELLANEOUS: | ||
| Minimum efficiency index MEI ≥: | 0.70 | |
| Net weight: | 1020kg | |
| Gross weight: | 1190kg | |
| Shipping volume: | 3.55 m³ | |
| Country of origin: | HU | |
| Customs fee number.: | 84137051 |
