GRUNDFOS einstufige inlinepumpen TPD 40-110/4 A-F-A-BQQE-FW3 Art. 98743363
Artikel-Nr.: 98743363
- Aktuell verfügbar

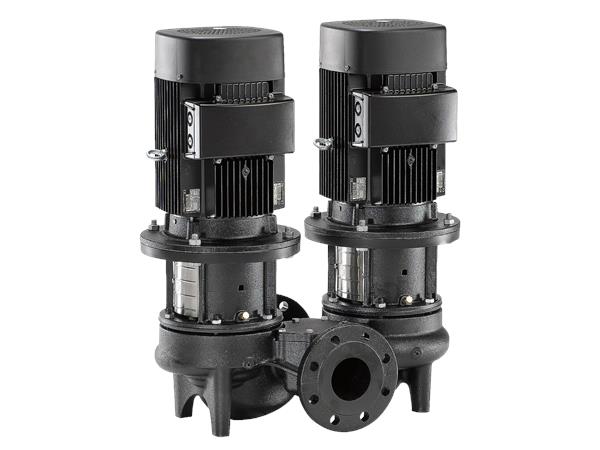

Single-stage double pump with spiral pump housing in inline design. The suction and pressure ports have the same diameter. The pump and the motor are directly connected to each other. The double pump has two pump heads arranged in parallel. The pumps are designed according to the top pull-out principle, which means that the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump housing remains in the piping. Each pump head is equipped with a non-relieved rubber bellows seal. The mechanical seal complies with EN 12756. Pipe connection via DIN flanges PN 16 in accordance with EN 1092-2 and ISO 7005-2. Each pump head is equipped with a fan-cooled asynchronous motor of the same size and performance.
| TYPE OF CONTROL: | ||
| Frequency converter: | without | |
| CONVEYING MEDIUM: | ||
| Media temperature range: | -25 .. 120 °C | |
| TECHNICAL DATA: | ||
| Pump speed on which the pump data is based: | 1410 1/min | |
| Rated flow rate: | 14.4 m³/h | |
| Nominal delivery height: | 8.65 m | |
| Actual impeller diameter: | 190mm | |
| GLRD code: | BQQE | |
| ISO acceptance class: | ISO9906:2012 3B2 | |
| MATERIALS: | ||
| Pump housing: | Gray cast iron | |
| Pump jacket: | EN-GJL-250 | |
| Pump housing: | ASTM class 35 | |
| Impeller material: | Gray cast iron | |
| Wheel: | EN-GJL-200 | |
| Impeller material according to ASTM: | ASTM class 30 | |
| INSTALLATION: | ||
| Ambient temperature: | -20 .. 55 °C | |
| Max. operating pressure: | 16 bar | |
| Max. pressure at specified temperature: | 16 bar / 120°C | |
| Connection type: | DIN | |
| Connection size: | DN 40 | |
| Nominal pressure level: | PN16 | |

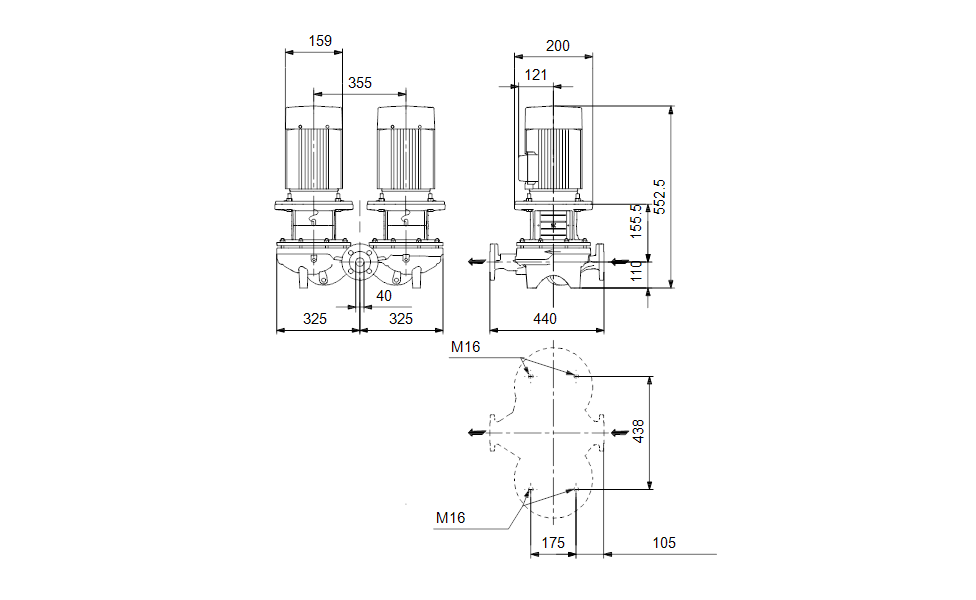

| Port to port length: | 440mm | |
| Size motor flange: | FF165 | |
| ELECTRICAL DATA: | ||
| Engine design: | SIEMENS | |
| Rated motor power P2: | 0.75kW | |
| Mains frequency: | 50Hz | |
| Rated voltage: | 3 x 220-240D/380-420YV | |
| Rated current: | 3.05/1.75A | |
| Starting current: | 710-710% | |
| Cos phi power factor: | 0.75 | |
| Rated speed: | 1450 rpm | |
| Efficiency: | IE3 82.5% | |
| IE efficiency class: | IE3 | |
| Motor efficiency at full load: | 82.5-82.5% | |
| Motor efficiency at 3/4 load: | 82.3-82.3% | |
| Motor efficiency at half load: | 79.3-79.3% | |
| Motor poles: | 4 | |
| Protection class (according to IEC 34-5): | IP55 | |
| Thermal class (IEC 85): | F | |
| Motor - product number: | 83V02204 | |
| MISCELLANEOUS: | ||
| Minimum efficiency index MEI ≥: | 0.70 | |
| Net weight: | 107kg | |
| Gross weight: | 125kg | |
| Shipping volume: | 0.39 m³ | |
| Country of origin: | HU | |
| Customs fee number.: | 84137065 | |
