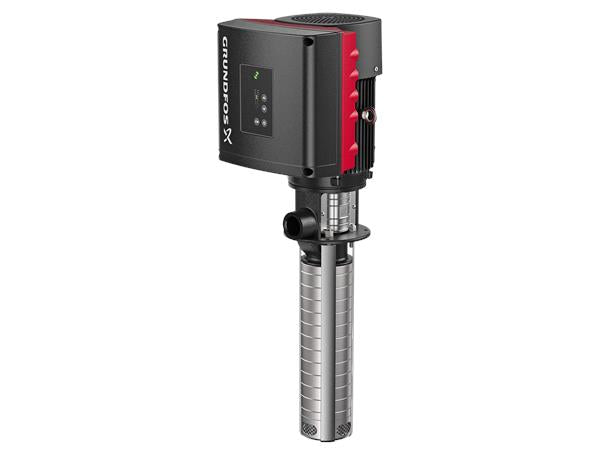

MTRE 1S-8/8 AWA-HUUV
Multi-stage, submersible, self-priming centrifugal pump for vertical installation in containers, etc. The components of the pump in contact with the media are made of gray cast iron (head and base) and stainless steel. The pump has the following features:
- Installation length according to DIN 5440.
- Impellers, intermediate chambers and the spline shaft are made of stainless steel.
- Mechanical seal according to EN 12756.
- Power is transmitted via a split clutch.
|
|
The cartridge seal promises high reliability and ease of service. The pump is equipped with a 1-phase, fan-cooled permanent magnet synchronous motor. For speed control, the motor has a frequency converter and PI controller, which are housed in the motor's terminal box. The electronic speed control enables the motor speed and thus the pump performance to be continuously adjusted to the current requirement. The setpoint can be set via a control panel on the motor terminal box. In addition, the pump can also be set to the “MIN”, “MAX” or “Stop” operating modes. The Grundfos Eye status display shows the operating status of the pump on the control panel as follows:
- Switched on: Motor is running (green indicator lights are on and rotating) or engine is ready for operation (green indicator lights are on continuously)
- Warning: Engine is still running (yellow indicator lights are on and rotating) or has been switched off (yellow indicator lights are on continuously)
- Alarm: Engine has been switched off (red indicator lights flashing).
|
|

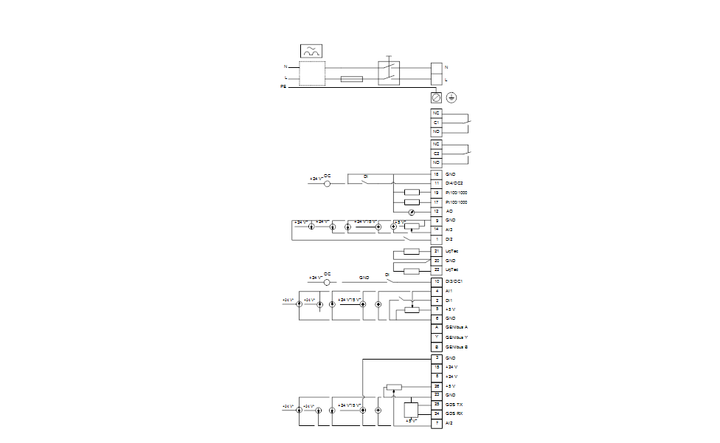

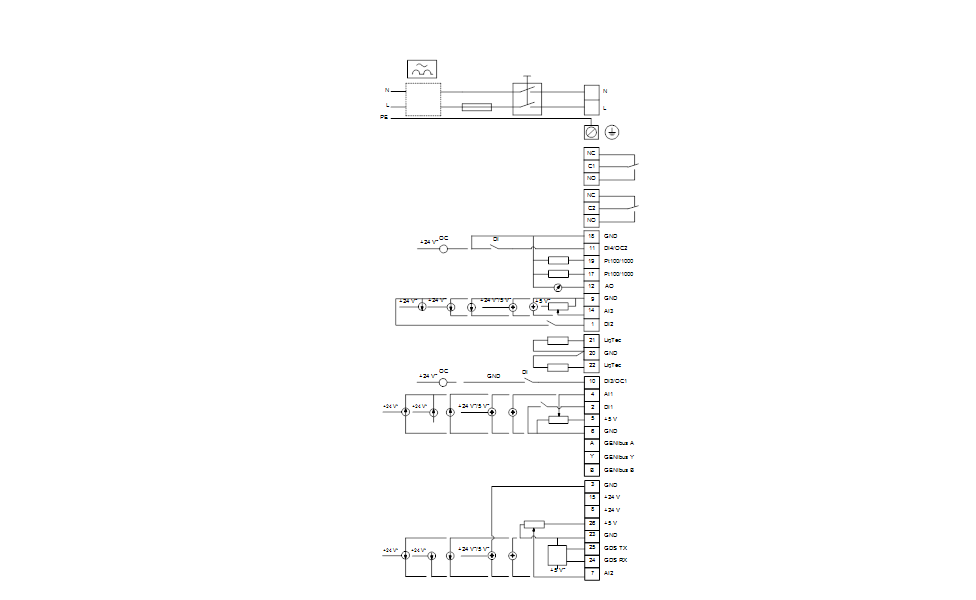

Communication with the pump is possible via the Grundfos GO Remote app (optional). Further settings can be made via the remote control and numerous operating parameters can be read out, such as: B. “Current value”, “Speed”, “Power consumption” and “Total power consumption”. The terminal box has several inputs and outputs, so that the motor can also be used in demanding applications that require many inputs and outputs:
- 2 digital inputs with dedicated functions
- 3 analog inputs 0(4)-20 mA, 0-5 V, 0-10 V or 0.5-3.5 V
- 5 V power supply for the potentiometer and a sensor
- 1 analog output 0-10 V or 0(4)-20 mA
- 2 freely configurable digital inputs or open collector outputs
- 2 Pt100/Pt1000 inputs
- Input for the LiqTec sensor (dry running protection)
- Input and output for the Grundfos Digital Sensor
- 24 V power supply for sensors
- 2 signaling relay outputs (potential-free contacts)
- GENIbus interface
- Interface for a Grundfos CIM fieldbus module.
|
|

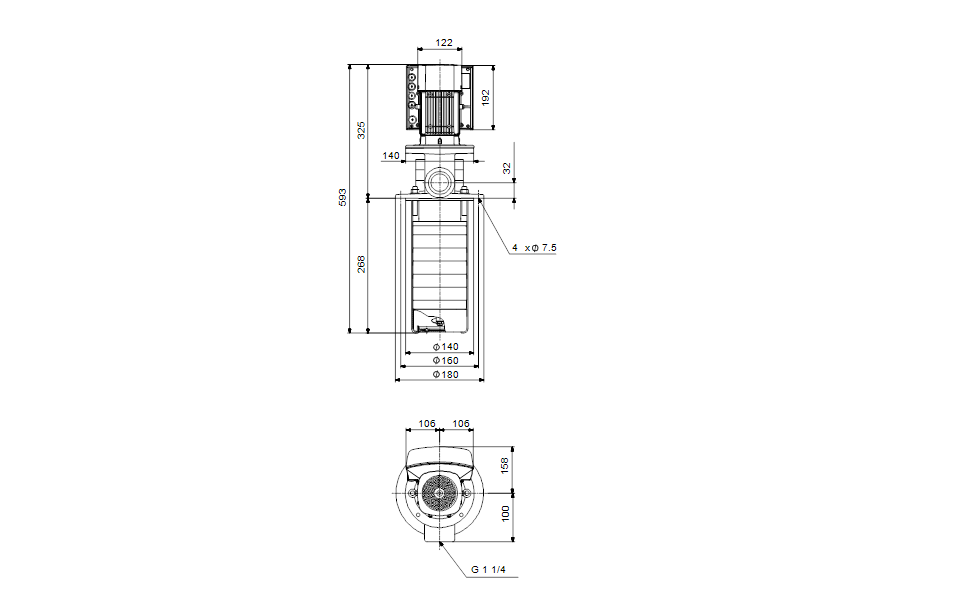

| Immersion depth: |
|
268mm |
|
| TYPE OF CONTROL: |
| Frequency converter: |
|
integrated |
|
| CONVEYING MEDIUM: |
| Media temperature range: |
|
-10 .. 90 °C |
|
| TECHNICAL DATA: |
| Pump speed on which the pump data is based: |
|
2757 1/min |
| Rated flow rate: |
|
15 l/min |
| Nominal delivery head: |
|
28.1m |
| Number of impeller chambers: |
|
8th |
| Return to the container: |
|
no |
| Pump orientation: |
|
vertical |
| GLRD code: |
|
HUUV |
| Approvals: |
|
CE,UKCA,RCM,cURus/cCSAus |
| Approvals for motor: |
|
CE, RCM, cURus, IE5, IES2, UKCA, SEPRO |
| Energy approvals for motor: |
|
CE |
| ISO acceptance class: |
|
ISO9906:2012 3B |
| Cable gland entry: |
|
4xM20 blind plugs |
|
| MATERIALS: |
| Pump head material: |
|
Gray cast iron |
| Pump head: |
|
EN 1561 EN-GJL-200 |
| |
|
ASTM A48-25B |
| Impeller material: |
|
stainless steel |
| Wheel: |
|
EN 1.4301 |
| Impeller material according to ASTM: |
|
AISI 304 |
|
| INSTALLATION: |
| Maximum ambient temperature: |
|
50°C |
| Max. operating pressure: |
|
25 bar |
| Max. pressure at specified temperature: |
|
25 bar / 90 °C |
| Connection type: |
|
G internal thread |
| Pressure port size: |
|
1 1/4 inches |
| Immersion depth: |
|
268mm |
| Size motor flange: |
|
FT85 |
|
| ELECTRICAL DATA: |
| Hour engine: |
|
IEC |
| Engine design: |
|
71A |
| Rated motor power P2: |
|
0.37kW |
| Mains frequency: |
|
50Hz |
| Suitable for 50/60 Hz: |
|
Yes |
| Rated voltage: |
|
1 x 200-240V |
| Rated current: |
|
2.40-2.10 A |
| Cos phi power factor: |
|
0.96 |
| Rated speed: |
|
360-4000 1/min |
| IE efficiency class: |
|
IE5 |
| Motor efficiency at full load: |
|
84.0% |
| Protection class (according to IEC 34-5): |
|
IP55 |
| Thermal class (IEC 85): |
|
F |
| Motor - product number: |
|
98190190 |
| Cable gland entry: |
|
4xM20 blind plugs |
|
| MISCELLANEOUS: |
| Position of the terminal box: |
|
6 o'clock |
| Minimum efficiency index MEI ≥: |
|
0.67 |
| Net weight: |
|
15.7kg |
| Gross weight: |
|
30.7kg |
| Shipping volume: |
|
0.141 m³ |
| Country of origin: |
|
HU |
| Customs fee number.: |
|
84137075 |
| Environmental approvals: |
|
WEEE |
| Environmental approvals for motor: |
|
WEEE |
