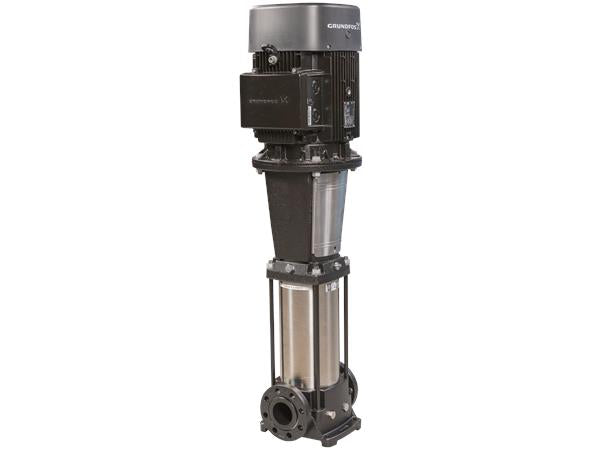

GRUNDFOS Kreiselpumpe CR 32-3 A-F-A-V-HQQV - Art. 96122039
Artikel-Nr.: 96122039
Teilen via
- Aktuell verfügbar
Technische Daten
CR 32-3 A-F-A-V-HQQV
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
| LIQUID: | ||
| Liquid temperature range: | -20 .. 90 °C | |
| TECHNICAL: | ||
| Pump speed on which pump data are based: | 2919 rpm | |
| Rated flow: | 30 m³/h | |
| Rated head: | 44.1 m | |
| Pump orientation: | Vertical | |
| Shaft seal arrangement: | Single | |
| Code for shaft seal: | HQQV | |
| Approvals: | CE,EAC,UKCA,SEPRO | |
| Approvals for drinking water: | WRAS | |
| Curve tolerance: | ISO9906:2012 3B | |
| MATERIALS: | ||
| Base: | Cast iron | |
| EN 1563 EN-GJS-500-7 | ||
| ASTM A536 80-55-06 | ||
| Impeller: | Stainless steel | |
| EN 1.4301 | ||
| AISI 304 | ||
| Bearing: | SIC | |
| Support bearing: | Graflon | |
| INSTALLATION: | ||
| Maximum ambient temperature: | 60 °C | |
| Maximum operating pressure: | 16 bar | |
| Max pressure at stated temp: | 16 bar / 90 °C | |
| 16 bar / -20 °C | ||
| Type of connection: | DIN | |
| Size of inlet connection: | DN 65 | |
| Size of outlet connection: | DN 65 | |
| Pressure rating for connection: | PN 40 | |
| Flange size for motor: | FF265 | |
| ELECTRICAL DATA: | ||
| Motor standard: | IEC | |
| Motor type: | 132SC | |
| Rated power - P2: | 5.5 kW | |
| Power (P2) required by pump: | 5.5 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415D V | |
| Rated current: | 11 A | |
| Starting current: | 1080-1180 % | |
| Cos phi - power factor: | 0.87-0.82 | |
| Rated speed: | 2920-2940 rpm | |
| IE Efficiency class: | IE3 | |
| Motor efficiency at full load: | 89.2-89.2 % | |
| Motor efficiency at 3/4 load: | 90.0-89.8 % | |
| Motor efficiency at 1/2 load: | 89.6-88.4 % | |
| Number of poles: | 2 | |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting | |
| Insulation class (IEC 85): | F | |
| Motor No: | 85U17417 | |
| CONTROLS: | ||
| Frequency converter: | None | |
| OTHERS: | ||
| Terminal box position: | 6 | |
| Minimum efficiency index, MEI ≥: | 0.70 | |
| Net weight: | 97 kg | |
| Gross weight: | 120 kg | |
| Shipping volume: | 0.309 m³ |
