GRUNDFOS Zubehör Dosierpumpen Fußventil 2L-G5/8 PV/T/C U2 - Art. 98070969
Artikel-Nr.: 98070969
Teilen via
- Aktuell verfügbar
Technische Daten

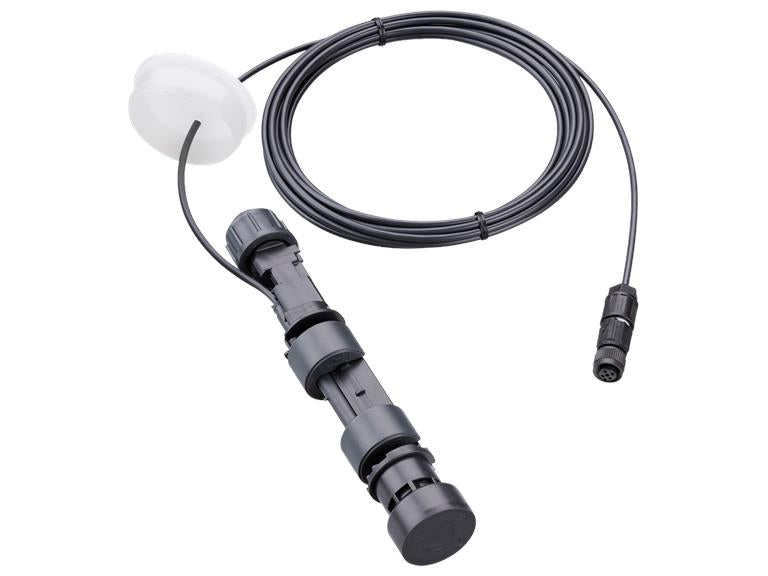

Fußventil 2L-G5/8 PV/T/C U2
Foot valves are installed at the lower end of the suction Hose and include weight, strainer (mesh size 0,8mm) and non-return valve Additionally they include
cylindrical tanks, or for use with tank adaptors.
Foot valves are installed at the lower end of the suction Hose and include weight, strainer (mesh size 0,8mm) and non-return valve Additionally they include
|
| TECHNISCHE DATEN: | ||
| Max. Durchfluss: | 60 l/h | |
| Level indication: | Low level and empty tank | |
| WERKSTOFFE: | ||
| Werkstoff: | Plastic | |
| Material: | PVDF | |
| Ventilkugel: | Ceramic | |
| Al2O3 | ||
| Dichtung: | Composite | |
| PTFE | ||
| Cable jacket: | Plastic | |
| PE | ||
| INSTALLATION: | ||
| Anschlusstyp: | Connection pack | |
| Anschlussgröße: | 4/6, 6/9, 6/12, 9/12 | |
| ELEKTRISCHE DATEN: | ||
| Kabellänge: | 5 m | |
| Steckertyp: | Rund | |
| Plug size: | M12 | |
| SONSTIGES: | ||
| Nettogewicht: | 0.48 kg | |
| Bruttogewicht: | 0.48 kg | |
| Versandvol.: | 0.005 m³ | |
| Herkunftsland: | DE | |
| Zolltarif Nr.: | 84814090 |
