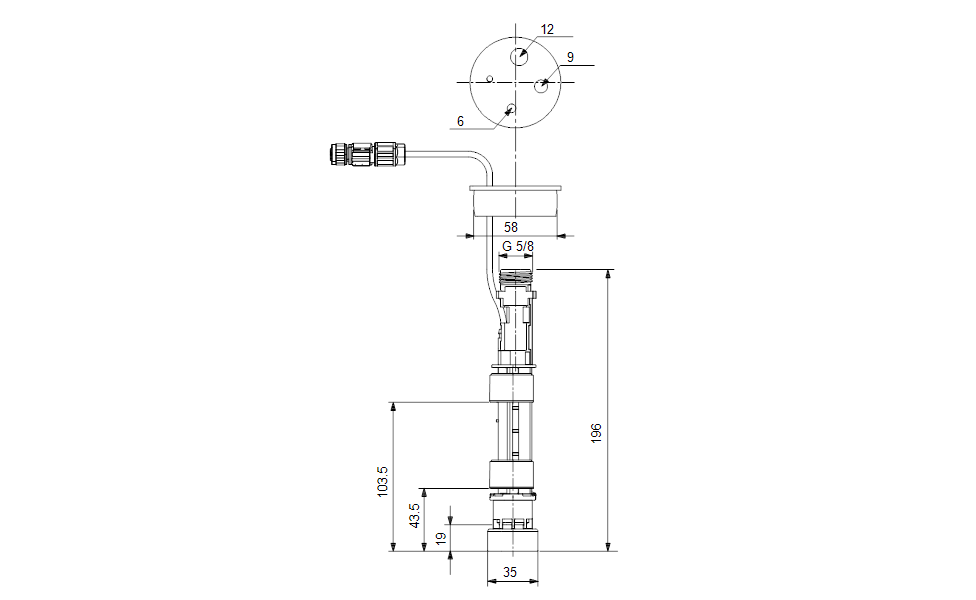

GRUNDFOS Zubehör Dosierpumpen Fußventil 2L-G5/8 PV/V,E/C U2 - Art. 98070968

Fußventil 2L-G5/8 PV/V,E/C U2

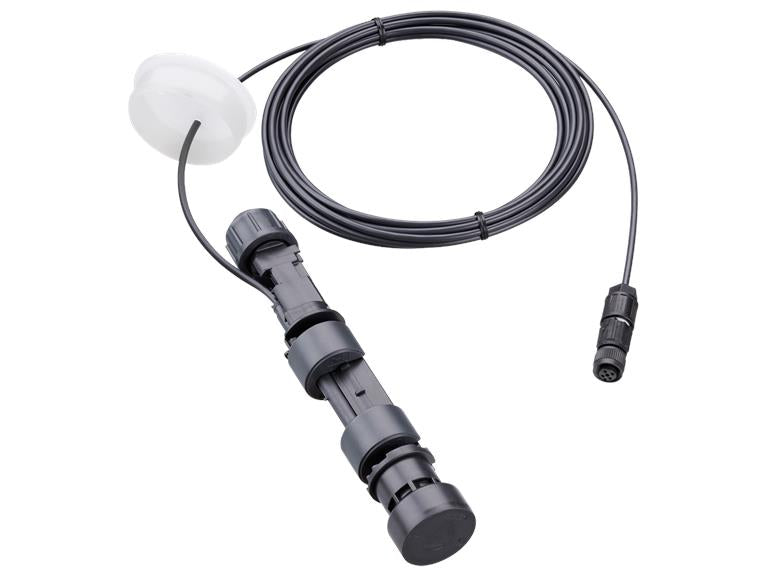

Foot valves are installed at the lower end of the suction Hose and include weight, strainer (mesh size 0,8mm) and non-return valve Additionally they include

Reed-switch unit with two floaters for low level and empty indication (switch mode adjustable NO or NC) Cable with PE jacket M 12 plug to connect DDA, DDC, DDE or DDI dosing pump PE cap, d.58 mm, for assembly in Grundfos

cylindrical tanks, or for use with tank adaptors.

TECHNISCHE DATEN:
Max. Durchfluss:		60 l/h
Level indication:		Low level and empty tank
WERKSTOFFE:
Werkstoff:		Plastic
Material:		PVDF
Ventilkugel:		Ceramic
		Al2O3
Dichtung:		Elastomer
		FKM/EPDM
Cable jacket:		Plastic
		PE
INSTALLATION:
Anschlusstyp:		Connection pack
Anschlussgröße:		4/6, 6/9, 6/12, 9/12
ELEKTRISCHE DATEN:
Kabellänge:		5 m
Steckertyp:		Rund
Plug size:		M12
SONSTIGES:
Nettogewicht:		0.48 kg
Bruttogewicht:		0.48 kg
Versandvol.:		0.005 m³
Herkunftsland:		DE
Zolltarif Nr.:		85030099
