GRUNDFOS Zubehör Dosierpumpen Impfarmatur - Art. 95730968
Artikel-Nr.: 95730968
GRUNDFOS Zubehör Dosierpumpen Impfarmatur - Art. 95730968
Teilen via
- Aktuell verfügbar
Technische Daten
Impfarmatur

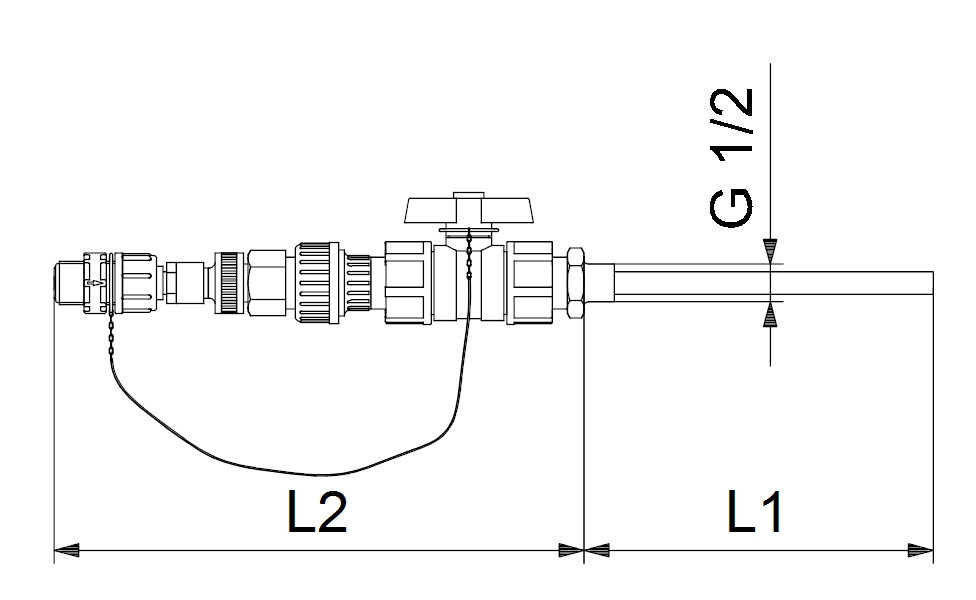

Injection units connect the dosing line with the process line. They ensure a minimum counterpressure of 0.7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal spring These injection units are used where regular cleaning of the injection pipe is required. The construction allows the withdrawal of the injection unit from the process line and the cleaning of it, without stopping the water flow. The injection point can be closed with the integrated ball valve. The immersion depth of the injection pipe can be adjusted.
Injection units connect the dosing line with the process line. They ensure a minimum counterpressure of 0.7 bar, and avoid backflow of the dosing liquid. The spring-loaded non-return valve comes with Tantal spring These injection units are used where regular cleaning of the injection pipe is required. The construction allows the withdrawal of the injection unit from the process line and the cleaning of it, without stopping the water flow. The injection point can be closed with the integrated ball valve. The immersion depth of the injection pipe can be adjusted.
| TECHNISCHE DATEN: | ||
| Pump connection: | G5/8 | |
| Version: | zur Reinigung entnehmbar | |
| WERKSTOFFE: | ||
| Gehäuse: | PVC | |
| Ventilkugel: | Keramik | |
| Dichtung: | FKM | |
| INSTALLATION: | ||
| Max. Betriebsdruck: | 10 bar | |
| Rohrverbindung: | 4/6, 6/9, 6/12, 9/12 | |
| Anschluss Ausgang: | G1/2" | |
| SONSTIGES: | ||
| Anwendungsart: | Dosierung von Chlorbleichlauge | |
| Herkunftsland: | DE | |
| Zolltarif Nr.: | 84818099 |
