GRUNDFOS Zubehör für die Datenübertragung Antenna 2G, 3G, 4G - Art. 99518079
Artikel-Nr.: 99518079
Teilen via
- Aktuell verfügbar
Technische Daten
Antenna 2G, 3G, 4G
Temperature range -55’C to + 70’C.
Used with Grundfos CIM/CIU 26X EU /US and Grundfos CIM/CIU 28X EU / US cellular interface ranges.
| Frequency Band: | 790 - 2690 MHz LTE800/1800/2600, GSM850/900/1800, PCS/DECT1900, UMTS900/2100 | |
| Nominal Impedance: | 50 Ohm | |
| Polarization: | Linear | |
| V.S.W.R: | <3.0:1 (790-960 MHz), <3.0:1 (1710-2170 MHz), < 1.5:1 (2500-2690 MHz) | |
| Gain: | 1 dBd, 3.1 dBi (790-960 MHz, 1710-2170 MHz) 3 dBd, 5.1 dBi (2500-2690 MHz) | |
| Connector Type: | SMA (Male) | |

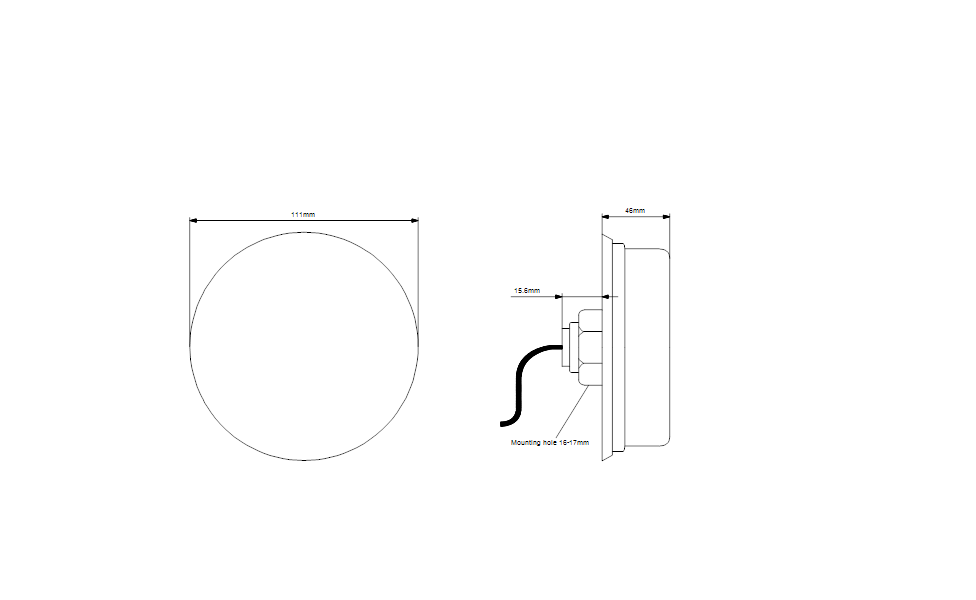

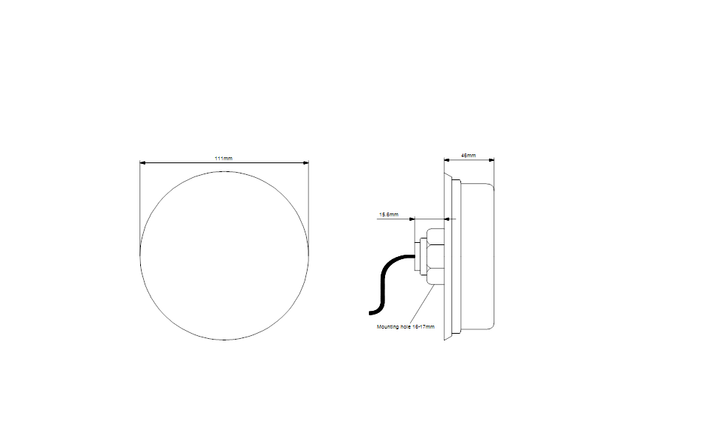

| Antenna Dimensions: | Ø 111 mm, 46mm height | |
| Antenna Cable Length: | 1500 mm | |
| IP class: | IP67 |
| ELEKTRISCHE DATEN: | ||
| Schutzart (gemäß IEC 34-5): | IP67 | |
| SONSTIGES: | ||
| Bruttogewicht: | 0.2 kg | |
| Fits to the following product(s): | CIM 280, CIM 260 | |
| Dänische VVS Nr.: | 380698469 | |
| Herkunftsland: | DK | |
| Zolltarif Nr.: | 85177100 | |
