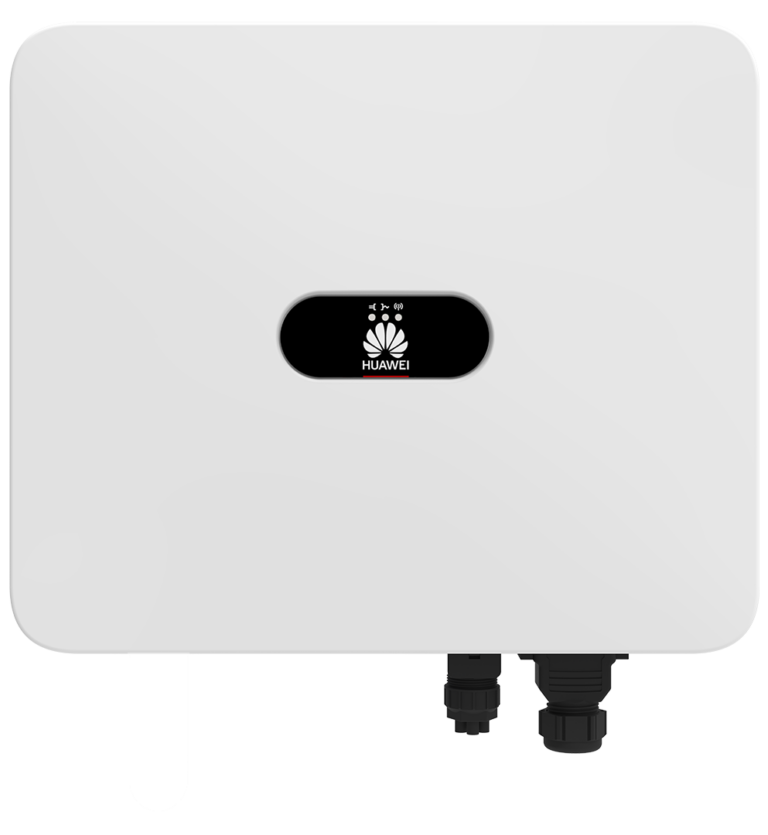

HUAWEI SUN2000-20K-MB0 Smart Energy Controller
Artikel-Nr.: 10440
- Auf Lager
General data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2,000 m)
Cooling: Smart Air Cooling
Display: LED displays; integrated WLAN + FusionSolar app
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional)
Weight (incl. mounting bracket): 21 kg
Dimensions (incl. mounting bracket): 546 x 460 x 228 mm
Protection class: IP66
PID consumption: 5W
Max. Number of devices connected in parallel (with Smart String ESS): 3
DC input
Recommended maximum PV power: 30,000 Wp
Max. input voltage: 1,100 V Input voltage: 1,100 V
Operating voltage range: 200 V ~ 1000 V
Starting voltage: 200 V
Nominal input voltage: 600 V
Max. Input current per MPPT: 30 A (two string) / 20 A (single string)
Max. Short-circuit current: 40 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 2
AC output
Mains connection: Three-phase
Nominal power: 20,000 W
Maximum apparent power: 22,000 W
Nominal output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415Vac; 3W / N + PE
AC mains frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 cap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
Efficiency
Max. Efficiency: 98.4 %
European efficiency: 97.9% - 98.2%
Protective devices
Overvoltage category: PV II / AC III
Anti-islanding protection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
DC overvoltage protection: TYPE II
AC overvoltage protection: Yes, compatible with protection class TYPE II according to EN/IEC 61643-11
DC insulation resistance detection: Yes
Residual current monitoring unit: Yes
Arc fault protection: Yes
Integrated PID control: Yes
Module optimizer
SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P
Standards and safety
EN/IEC 62109-1, EN/IEC 62109-2
Mains connection conditions
IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/ IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244 (UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11.
Further information on conformity to standards is available on request.
included in the scope of delivery
PV Connectors
AC connectors
Signal cable connector
Bracket
