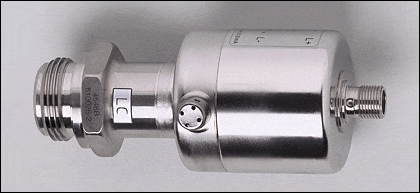

IFM Electronic PMP04AProfibus PA pressure transmitter
Artikel-Nr.: PMP04AP
Teilen via
- Aktuell verfügbar
Technische Daten
IFM Electronic PMP04AProfibus PA pressure transmitter
Profibus PA pressure transmitter Profibus PA electrically isolated For use in hazardous areas: Connection to certified intrinsically safe circuits with the maximum values U = 24 V / I = 380 mA / P = 5.32 mW Internal inductance: < 1ВµH; internal capacitance: < 1nF The unit can be connected to intrinsically safe fieldbus systems according to the FISCO model. no dead space Suitable for all standard CIP and SIP processes Online monitoring/diagnosis of electronics and measuring cell Profibus PA profile 3.01 I&M functionality ATEX approval Group II category 1G 1/2GD 2GD Quick disconnect
Hersteller: IFM
