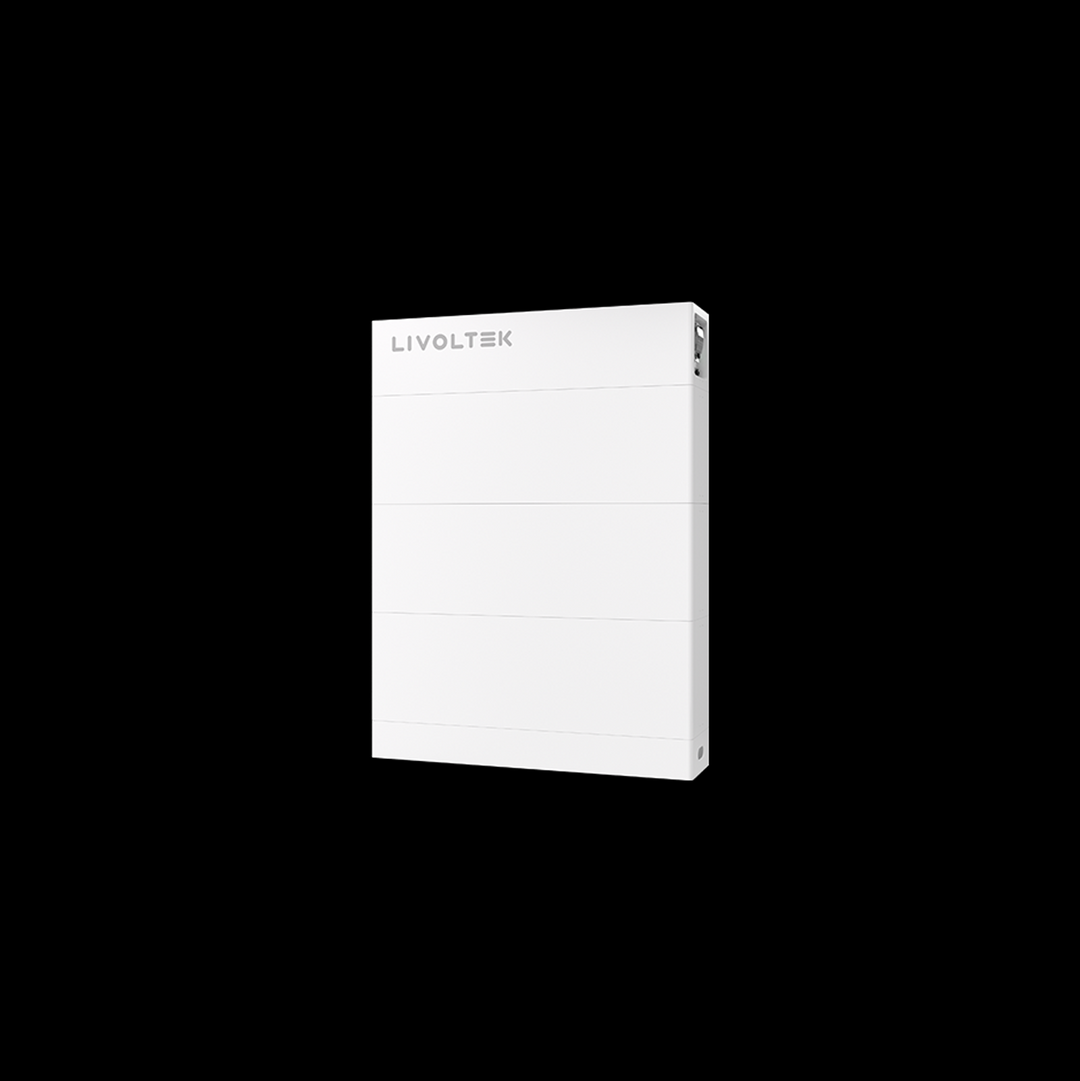

Livoltek Energiespeicher BHF-S30 G2
Artikel-Nr.: BHF-S30 G2
Teilen via
- Aktuell verfügbar
Technische Daten
Beschreibung
The LIVOLTEK BHF HV Battery System is ideal for new installation of residential energy storage system. With high energy density,high efficiency ,modular stacking design and IP65 rating, BHF series battery is space-saving for indoor and outdoor installation.Up to 30 kWh system can fit your high energy demand.
| Kapazität (kWh) | 30.7 |
| Spannung der Batterie (V) | 614.4 |
| Technologie | LFP |
Einzelheiten zum Produkt
| Name der Serie | BHF-S10/S15/S20/S25/S30 |
| Name des Modells | BHF-S30 G2 |
| Garantie Jahre | 10 |
| Anzahl der Batteriemodule | 6 |
| Spannung min (V) | 518.4 |
| Spannung max (V) | 691.2 |
| Tiefe der Entleerung (%) | 90 |
| Schutzart (IP) | IP65 |
| Max Charging / Discharging temperature | 55 Charge / 55 Discharge |
| Min Charging / Discharging temperature | 0 Charge / -20 Discharge |
| Kommunikationsprotokoll | CAN |
Messungen
| Länge (mm) | 870 |
| Breite (mm) | 1167 |
| Höhe (mm) | 208.7 |
| Gewicht (kg) | 418 |
