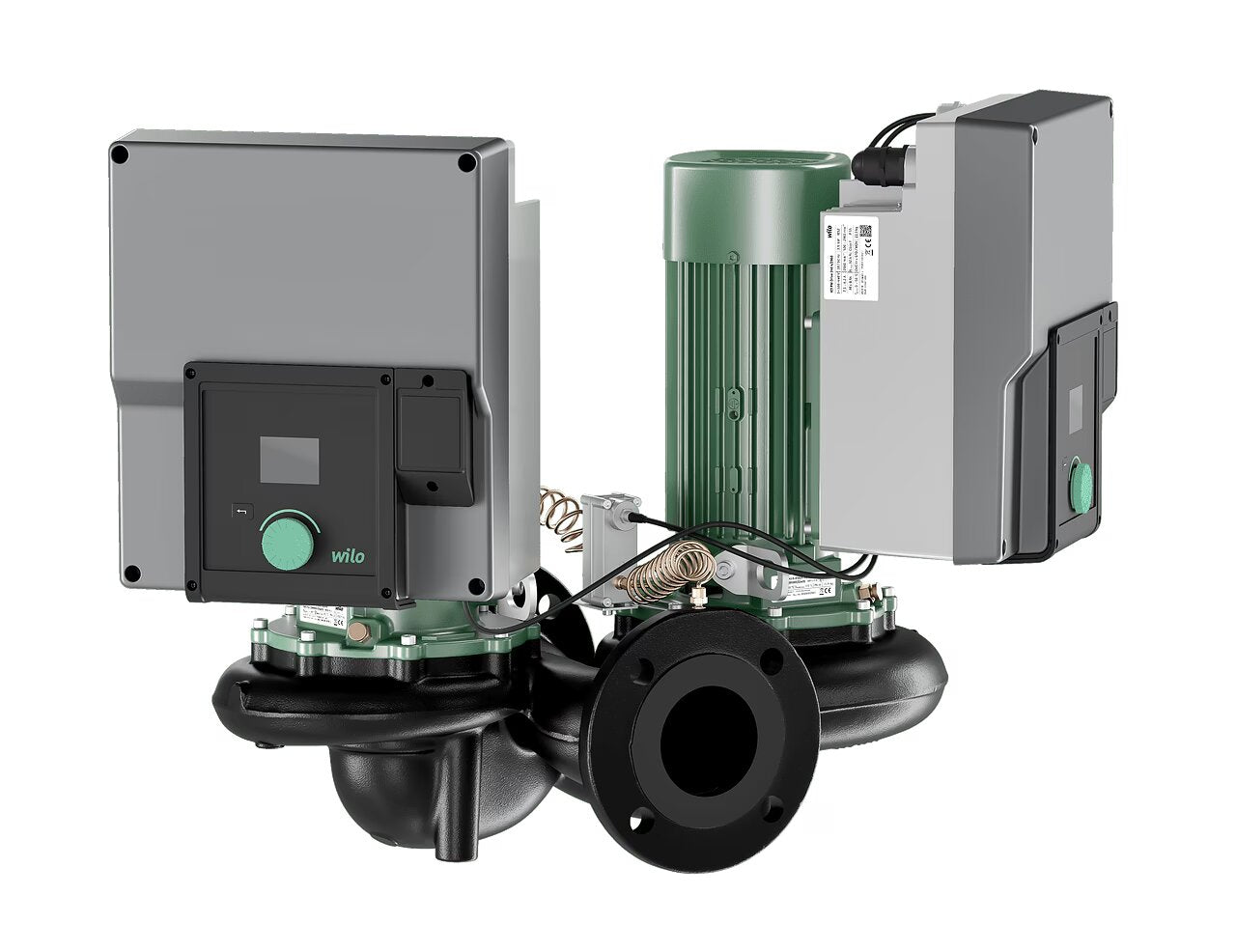

WILO Inlinepumpe Yonos GIGA2.0-D 65/1-24/5,5-R1-S1 Art. 2206067

Inline pump with high energy efficiency with EC motor of efficiency class IE5 according to IEC 60034-30-2, hydraulic minimum efficiency index MEI ≥ 0.4 and electronic power adjustment in dry-running design. The pump is designed as a single-stage low-pressure centrifugal pump with flange connection and mechanical seal. The Yonos GIGA2.0-D is primarily designed for pumping heating water (according to VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, air conditioning and cooling systems.

Construction ...-R1-S1

• Single-stage low-pressure centrifugal pump with an undivided shaft in a block design
• Spiral casing in inline design (suction and pressure ports with the same flanges in one line)
• Flanges PN 16 - according to EN 1092-2
• Pressure measuring connections (R 1/8) for the possible subsequent installation of a differential pressure transmitter (version ...-R1 without differential pressure transmitter)
• Pump housing and lantern/motor flange with cataphoresis coating as standard
• Mechanical seal S1 recommended for water-glycol mixtures with glycol proportions of up to max. 50% by volume and a media temperature of -20°C to max. +90 °C ... +110 °C and also for oil proportions in the water-glycol mixture .

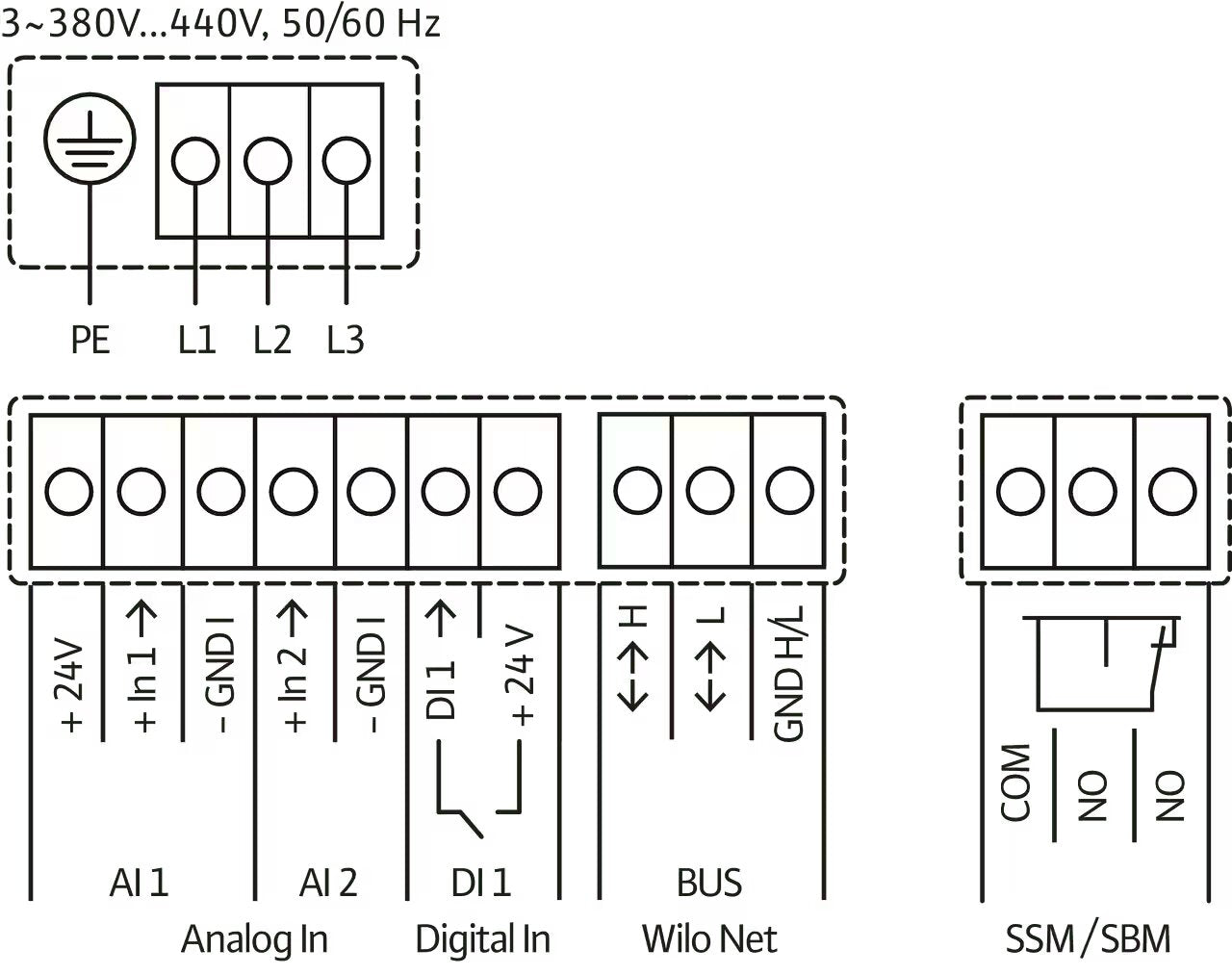

• Connection voltages:
  • 3~440 V ±10% 50/60 Hz; 3~400V ±10% 50/60Hz; 3~380V -5% +10% 50/60 Hz
  • Variant M-: 1~220 V ... 240 V (±10%), 50/60 Hz
• Compliance with electromagnetic compatibility without additional measures
  • Interference emission for residential areas according to EN 61800-3:2018
  • Interference immunity for industrial areas according to EN61800-3:2018

Regulators:

• Variable differential pressure (dp-v)
• Constant differential pressure (dp-c)
• Constant speed (n-const.)
• Custom PID control
• Only possible with differential pressure sensor:
  • Variable differential pressure (dp-v)
  • Constant differential pressure (dp-c)

Features:

• Double pump operating modes: main/reserve operation,  efficiency-optimized  addition operation  for dp-c and dp-v
• Integrated full engine protection
• Only possible with differential pressure sensor:
  • Efficiency-optimized addition operation for dp-c and dp-v

Display in the “home screen” of the graphical display:

• Currently set control type
• Current setpoint
• Current actual value
• Current volume flow (only when differential pressure sensor is connected)
• Current power consumption

Execution:

• 1 analog input : 0 ... 10 V, 2 ... 10 V, 0 ... 20 mA, 4 ... 20 mA only for sensor value of differential pressure sensor
• 1 analog input : 0 ... 10 V, 2 ... 10 V, 0 ... 20 mA, 4 ... 20 mA only for external setpoint generator
• 1 digital input (Ext. OFF)
• 2 signaling relays for operating and fault messages
• Slot for Wilo CIF modules  with interfaces for building automation GA (optional accessories: CIF modules Ethernet, Modbus RTU, BACnet MS/TP, LON, PLR, CAN)
• Wilo Net  as a Wilo system bus for communication with double pump operation
• Automatic emergency operation  in special conditions (pump speed definable), e.g. if bus communication or sensor values ​​fail
• Rotatable graphic color display (2 inches) with operation via a one-button manual control level
• Integrated double pump management  (double pumps are fully wired), connection via WILO Net
• Cable break detection  with analog signal (in conjunction with 2 ... 10V or 4 ... 20mA)
• Standard  condensate drain holes  in the motor housing (closed upon delivery)
• Vent valve  on the lantern

Scope of delivery:

• Pump
• Installation and operating instructions and declaration of conformity

Accessories  (must be ordered separately) :

3 consoles with fastening material for foundation construction

• Blind flanges for double pump housings
• To connect to building automation:
  • CIF-PLR Module
  • CIF-Modul LON
  • CIF-Modul BACnet MS/TP
  • CIF-Modbus RTU Module
  • CIF-CANopen module
  • CIF-Modul Ethernet Multiprotocol (Modbus TCP, BACnet/ IP)
  • M12 RJ45 CIF Ethernet connection
• Differenzdruckgeber DDG 2 ... 10V
• Differential pressure transmitter DDG 4 ... 20mA
