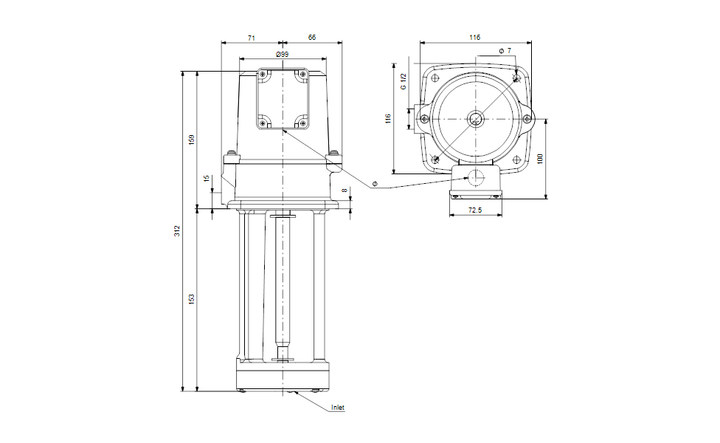

GRUNDFOS EINTAUCHPUMPEN MTA 30-150 AWAB Art. 97989184
Teilen via
- Aktuell verfügbar
Technische Daten
MTA 30-150 AWAB
The MTA series is a low-pressure immersion centrifugal pump. Its area of application is use as a return pump in filtering and conveying systems in machine tools. The pump has the following features:
|
| Immersion depth: | 153mmmm | |
| TYPE OF CONTROL: | ||
| Frequency converter: | Not prepared for frequency converter operation | |
| CONVEYING MEDIUM: | ||
| Conveying medium: | emulsion | |
| Media temperature range: | 0 .. 60 °C | |
| Media temperature during operation: | 20°C | |
| Density: | 998.2 kg/m³ | |
| TECHNICAL DATA: | ||
| Nominal volume flow: | 30 l/min | |
| Nominal delivery head: | 3.3m | |
| Maximum particle size: | 5mm | |
| Approvals: | CE | |
| Cable entry: | 22 | |
| MATERIALS: | ||
| Pump housing: | Gray cast iron | |
| Pump jacket: | EN 1561 EN-GJL-200 | |
| Pump housing: | ASTM A48-25B | |
| Impeller material: | PAA GF50 | |
| INSTALLATION: | ||
| Maximum ambient temperature: | 40°C | |
| Pressure port connection: | G 1/2 | |
| ELECTRICAL DATA: | ||
| Power consumption P1: | 86W | |
| Mains frequency: | 50Hz | |
| Rated voltage: | 3 x 220-240D/380-415YV | |
| Operating factor: | 1.15 | |
| Rated current: | 0.33/0.19 A | |
| Rated speed, 50 Hz: | 2940 1/min | |
| Motor efficiency at full load: | 71.2% | |
| Protection class (according to IEC 34-5): | IP54 | |
| Insulation class (IEC 85): | F | |
| Motor protection: | N | |
| MISCELLANEOUS: | ||
| Position of the terminal box: | 9 clock | |
| Net weight: | 6.74kg | |
| Gross weight: | 7.66kg | |
| Shipping volume: | 0.012 m³ | |
| Danish VVS number: | 386942115 | |
| Country of origin: | KR | |
| Customs fee number.: | 84137051 |
